The question behind this page
I am designing the signboard for my shop — which type of signboard should the design be drawn for, and what does each type allow?
Key Takeaways
- Pick the build type before you finish the design. A layout that works as a printed panel may not be buildable as 3D letters.
- Flat panel (ACP or acrylic) accepts almost any artwork and is the most economical.
- Lightbox is for shops that trade after dark; the whole face glows, so keep the background simple.
- 3D box-up letters need bold strokes and few words. For LED letters, plan on a letter height of about 15–20 cm or more.
- Pole and pylon signs are read from moving cars: the name and little else.
- Every council needs a licence and most check the Bahasa Malaysia wording, so settle the text before fabrication.
The Short Answer
A shop signboard design is only finished when it matches the way the sign will be built. The four common builds — flat panel, lightbox, 3D box-up letters and pole or pylon signs — each put different limits on letter size, stroke thickness, colours and how much text you can include.
So the order of work is: decide who needs to read the sign and from how far, choose the build type that suits that, and then draw the layout to that build's rules. This guide covers the middle step. For layout, fonts and colour contrast, read our signboard design tips; for the fabrication service itself, see signage and signboard services.
Start With Who Reads It, and From Where
Three questions settle most of the design before you open any software:
- How far away is the reader? Someone on the five-foot way is two metres from the sign. A driver across a four-lane road may be 20 to 30 metres away. Letter height follows distance — the table in our signboard size guide gives the numbers.
- Are they walking or driving? A driver has a second or two. That is a name and perhaps one word about what you sell.
- Do you trade at night? If yes, the sign needs its own light. If you close at six, lighting is optional.
Write the answers down. They tell you which of the builds below is worth paying for.
Flat Panel Signboards: ACP and Acrylic
The standard Malaysian shopfront sign is a flat panel across the fascia. The panel is usually aluminium composite panel (ACP) on a metal frame; the graphics are printed, applied as cut vinyl, or added as cut-out acrylic letters on top. Smaller shop and office signs are often made directly from acrylic sheet.
What the design can do: almost anything. Full-colour logos, photos of food, several lines of text and more than one language all fit on a flat panel.
What to watch: because everything is possible, flat panels are where signs get overcrowded. Keep to the name, one line saying what you do, and a contact detail at most. A flat panel has no light of its own, so at night it depends on street lighting or added spotlights.
A useful upgrade is a plain ACP background with raised acrylic letters for the business name. It costs more than print alone but reads much better from the road. For smaller premises, see the glass-look acrylic business signboard.
Lightbox Signboards

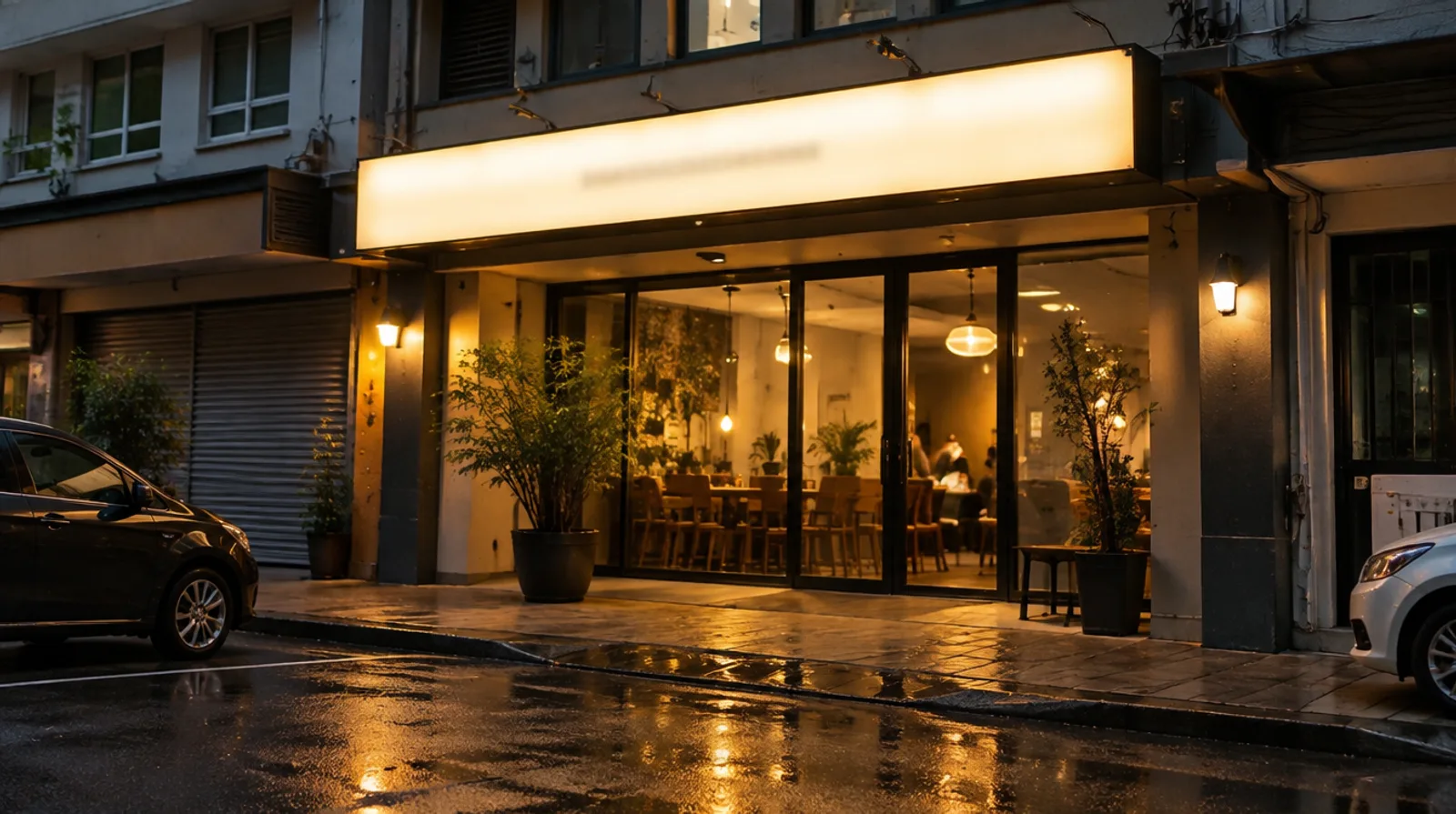

A lightbox is a shallow box with LED lighting inside and a translucent face, so the entire sign glows. It is the usual choice for restaurants, clinics, convenience stores and anyone open after dark.
Need help with Signboard?
Get a free quote from UMAKE — custom signage designed and manufactured in Malaysia.
Design rules for a lit face:
- Simple backgrounds. Large areas of flat colour light evenly. Busy photo backgrounds look patchy when lit from behind.
- Strong contrast. Dark letters on a light glowing face, or light letters on a dark face, both work. Mid-tones on mid-tones disappear at night.
- Check it both ways. The sign has a daytime look, unlit, and a night look. Ask for a mockup of each.
- Depth. A lightbox projects from the wall, and some councils limit that depth, so confirm before you fix the size.
See the acrylic LED light box signboard and the lightbox signboard guide.
3D Box-Up Letters

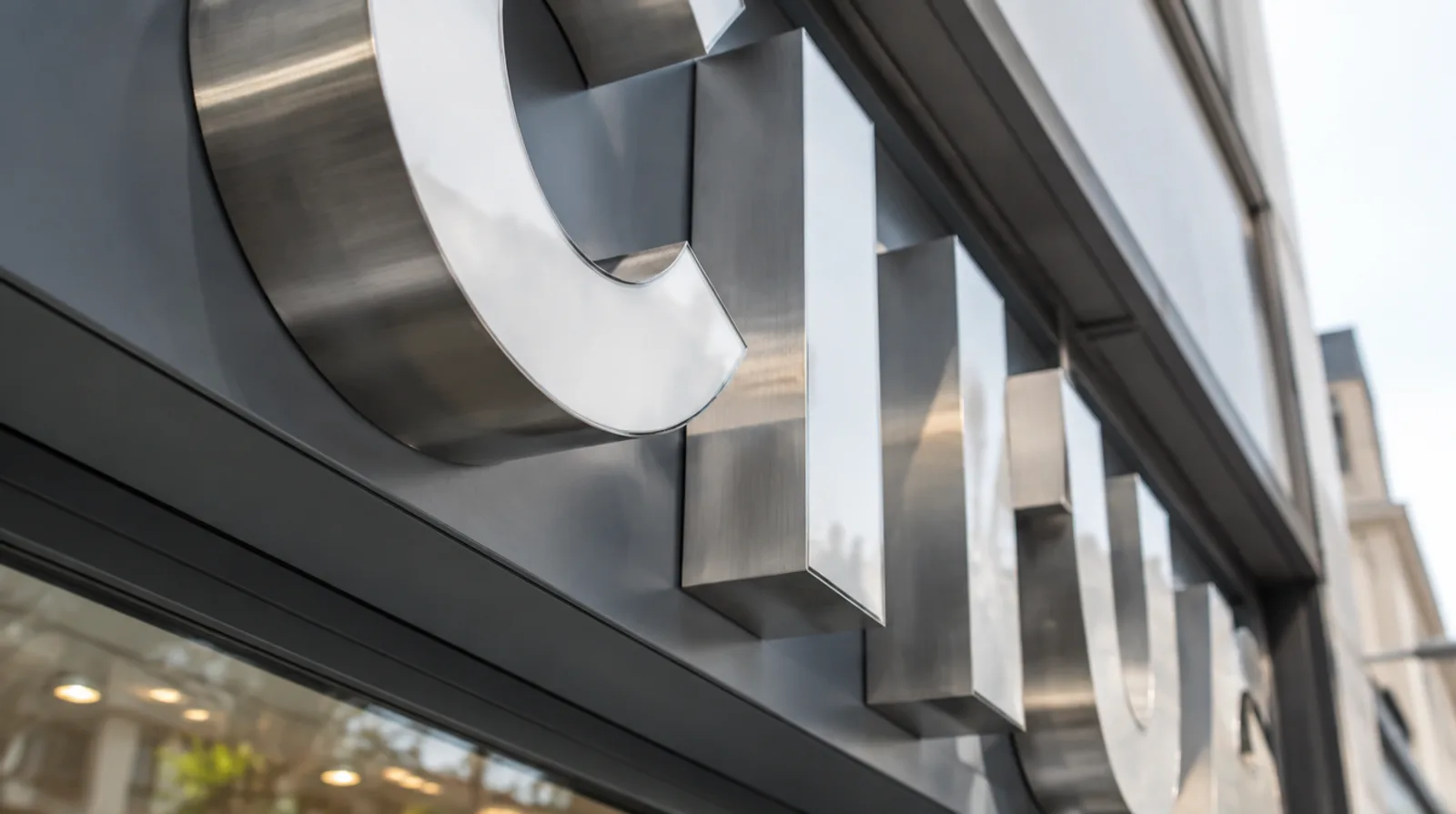

Box-up letters are individual hollow letters with real depth, made from stainless steel, aluminium or acrylic, with or without LEDs inside. They look the most established of the four types, and they put the tightest limits on the design.
- Bold strokes. Each letter is a small box. Thin serifs and script hairlines cannot be formed, and there is no room inside them for LEDs.
- Minimum height for LED letters. Plan on about 15–20 cm letter height or more for illuminated letters. Smaller than that, the stroke is too narrow to light evenly. Non-lit letters can go smaller.
- Few words. You pay per letter. Use box-up for the name and logo, and put secondary text on a flat panel behind or below.
- Connected scripts. Handwriting-style logos can be built, but usually as one joined shape rather than separate letters. Send the logo early so we can check.
Products: LED box-up channel letters and aluminium box-up letters without LED. The production steps are explained in how shopfront signage is made.
Pole and Pylon Signs

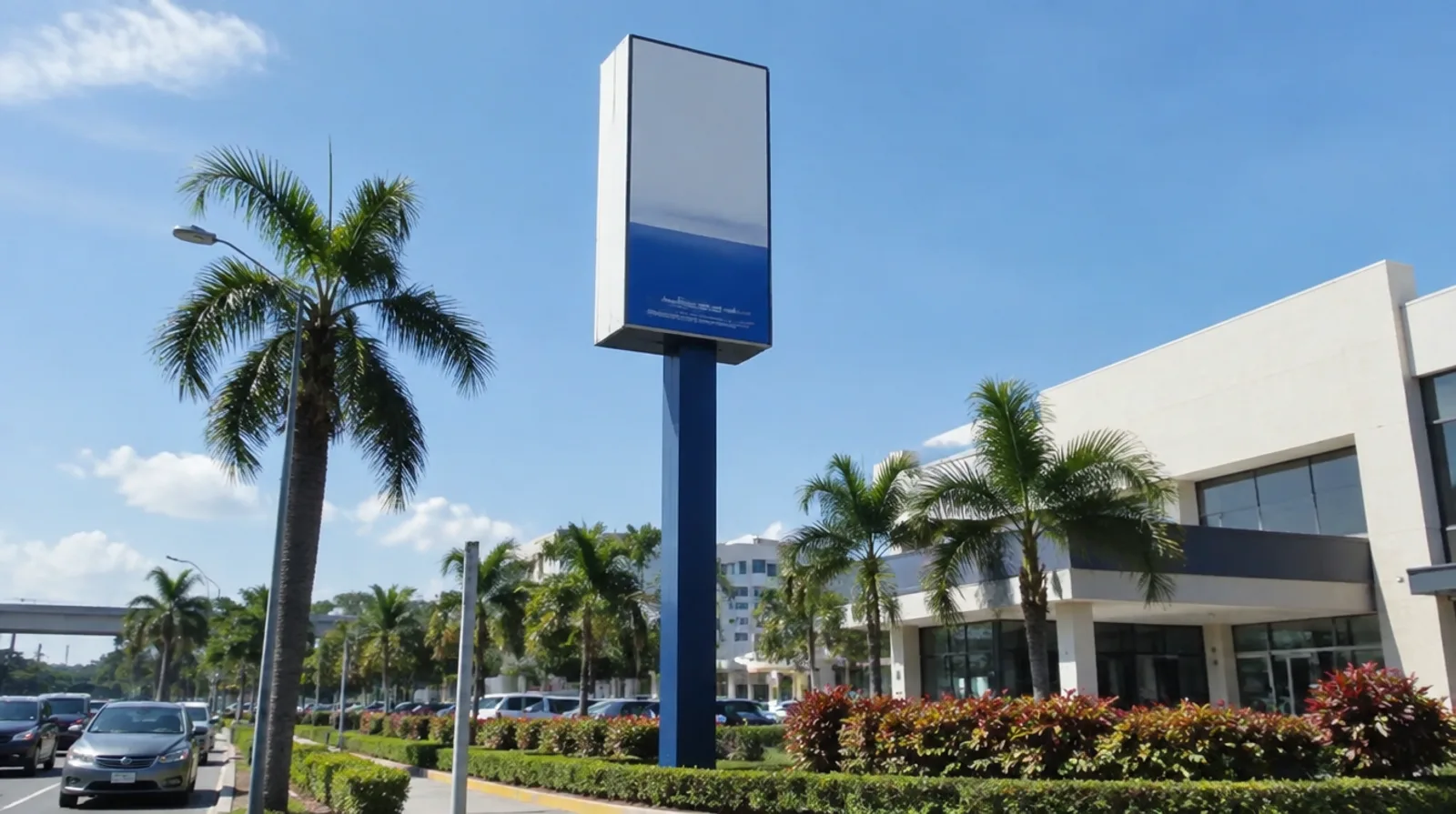

A pole or pylon sign stands on its own structure near the road, away from the building. It suits petrol stations, showrooms, factories, clinics set back from the road and shops hidden behind parking.
Design for speed. The reader is in a moving vehicle, so use the largest letters the panel allows, the name or logo, and an arrow if the entrance is not obvious. Both faces are normally used, so check the layout reads from each direction of traffic.
It is a structure, not just a sign. A pylon needs a footing and a steel post sized for wind, and councils treat it more strictly than a fascia sign. Expect a longer approval and build time than for a shopfront panel, and get the position agreed with your landlord and council before design work starts.
Build Types Compared
| Build type | Artwork freedom | Night visibility | Text it can carry | Relative cost |
|---|---|---|---|---|
| Flat panel (ACP / acrylic) | Highest | Needs outside light | Name, tagline, contact | Lowest |
| Lightbox | High, simple backgrounds | Whole face glows | Name, tagline | Middle |
| 3D box-up letters | Bold shapes only | Excellent with LED | Name and logo | Higher; rises per letter |
| Pole / pylon | Simple | Usually lit | Name only | Highest; includes structure |
Many shopfronts combine two: a flat ACP background with box-up letters for the name is the most common pairing.
Licence and Wording Checks
Every business signboard in Malaysia needs a licence from the local council, and the application includes a drawing of the sign with its dimensions. Most councils also check that Bahasa Malaysia is used and given prominence. Both affect the design, so deal with them before fabrication, not after.
Our signboard licence guide explains the process, and there is a separate guide for DBKL in Kuala Lumpur. Rules differ between councils and change over time; confirm with your own council.
What to Hand to the Fabricator
A complete brief gets you an accurate quote the first time:
- A straight-on photo of the shopfront, and the fascia width and height in feet or metres.
- Your logo as a vector file (AI, PDF or SVG).
- The exact wording, including the Bahasa Malaysia line.
- The build type you prefer, or your answers to the three questions above.
- Lit or non-lit, and where the nearest power point is.
- The floor level and how the fascia can be reached.
We fabricate all four types at our workshop in Balakong, Selangor. On-site installation is available in KL and Selangor only; for other states we fabricate and deliver for your local installer. Send the brief through the contact page or WhatsApp for a quote.
Frequently Asked Questions
What type of signboard is best for a shop?
It depends on viewing distance and opening hours. A flat ACP or acrylic panel suits most daytime shops and tight budgets. A lightbox suits businesses open after dark. 3D box-up letters give the most established look for a name and logo. Many shopfronts combine a flat panel background with box-up letters for the name.
How much text should a shop signboard have?
As little as possible: the business name, one line saying what you do, and at most one contact detail. Drivers have only a second or two to read it. On 3D box-up and pylon signs, keep to the name and logo only.
What is the minimum letter height for LED 3D letters?
Plan on about 15-20 cm letter height or more for illuminated box-up letters. Below that, the letter strokes are too narrow to fit LEDs and light evenly. Non-illuminated letters can be made smaller.
Can my logo be made into 3D box-up letters?
Usually, if the shapes are bold. Thin serifs, hairline scripts and very fine detail cannot be formed as hollow letters. Handwriting-style logos are often built as one joined shape. Send the vector logo early so the fabricator can check it.
Do I need a licence for my shop signboard?
Yes. Business signboards in Malaysia need a licence from the local council, and the application includes a dimensioned drawing of the sign. Most councils also check the use and prominence of Bahasa Malaysia. Rules vary by council, so confirm with yours before fabrication.
Do you install signboards outside the Klang Valley?
No. On-site installation is offered in KL and Selangor only. For other states we fabricate the signboard and deliver it for your own local installer to fit.
