Walk through any major street in Kuala Lumpur, Penang, or Johor Bahru today and one thing is immediately clear: LED signboards have taken over Malaysia''s commercial landscape. From gleaming 3D channel letters on shopping mall facades to vibrant LED neon flex signs in trendy cafes, the shift from traditional neon and fluorescent signage to LED technology is nothing short of a revolution.
According to the Energy Commission of Malaysia, LED signboards consume only one-fifth of the electricity compared to traditional neon lights at equivalent brightness. That alone explains why thousands of Malaysian businesses are making the switch every year. But energy savings are just the beginning.
Whether you are a new business owner setting up your first shop lot in Selangor, a restaurant chain expanding across Malaysia, or a factory looking to upgrade your building signage, this guide covers everything you need to know about LED signboards in Malaysia -- types, pricing, running costs, durability in our tropical climate, and the licensing regulations you cannot afford to ignore.
Types of LED Signboards in Malaysia

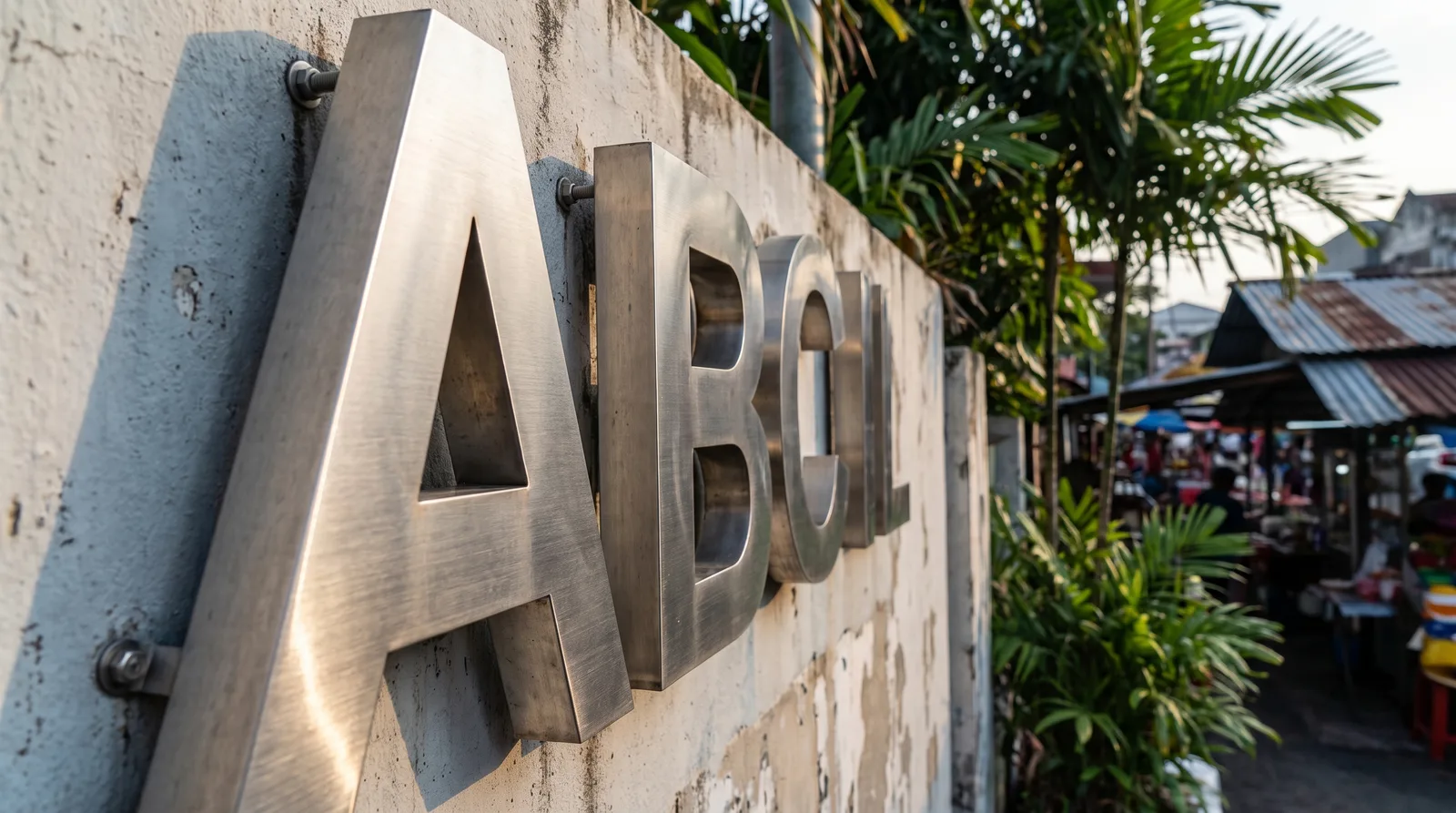

1. LED Channel Letters (3D Box-Up Lettering)
LED channel letters are the gold standard for professional business signage in Malaysia. These are three-dimensional letters -- typically fabricated from stainless steel, aluminium, or acrylic -- with LED modules installed inside to create illumination.
There are three illumination styles:
- Frontlit -- Light shines through the acrylic face of each letter, creating bold, directly readable text. Most common for retail shops, restaurants, and office buildings.
- Backlit (Halo-Lit) -- Light projects backward against the wall, creating a soft "halo" glow around each letter. Popular with upscale brands and corporate offices.
- Combined Front + Backlit -- Both effects together for maximum visual impact, often used by banks, hotels, and flagship retail stores.
Best for: Shop fronts, corporate offices, restaurants, retail chains, shopping malls.
Typical price range: RM2,000 -- RM15,000+ depending on size, material, and letter count.
2. LED Neon Flex Signboard
LED neon flex has become one of the most popular signboard types in Malaysia, especially among cafes, barbershops, and lifestyle brands. These signs use flexible LED tubes encased in silicone to replicate the classic neon glow -- but without the fragility, high voltage, or mercury content of traditional glass neon.
- Operates at safe 12V-24V (versus 15,000V for traditional neon)
- Virtually unbreakable silicone construction
- Available in RGB and single-colour options
- Fully customisable -- any text, logo, or shape
- Indoor and outdoor variants available
Best for: Cafes, restaurants, retail interiors, event backdrops, Instagram-worthy wall features.
Typical price range: RM500 -- RM5,000+ depending on complexity and size.
3. LED Display Board (Digital Signage)
LED display boards are programmable electronic screens capable of showing text, images, animations, and even full video content.
| Type | Pixel Pitch | Typical Size | Price Range (RM) |
|---|---|---|---|
| Indoor LED Display | P2.5 -- P4 | 3'' x 6'' | 4,000 -- 9,000 |
| Outdoor LED Display | P6 -- P10 | 4'' x 8'' | 8,000 -- 20,000 |
| Mobile LED Screen | P5 -- P8 | 6'' x 10'' | 15,000 -- 35,000 |
| LED Video Wall | P1.5 -- P3 | Custom | 20,000 -- 100,000+ |
4. LED Lightbox Signboard
LED lightboxes combine a printed graphic panel with edge-lit or backlit LED modules housed inside a slim aluminium frame. They use 80% less power than fluorescent lightbox alternatives.
Best for: Restaurant menus, retail window displays, shop front signage, exhibition booths.
Typical price range: RM800 -- RM8,000+ depending on size and frame quality.
LED vs Traditional Signboard: A Complete Comparison
For design considerations, see our expert guide on signboard design in Malaysia.
| Factor | LED Signboard | Traditional Neon/Fluorescent |
|---|---|---|
| Energy Consumption | ~20 kWh/month (10ft sign) | ~90 kWh/month |
| Lifespan | 50,000 -- 100,000 hours | 10,000 -- 30,000 hours |
| Maintenance | Minimal | Frequent tube replacement |
| Weather Resistance | IP65+ rated, waterproof | Glass tubes vulnerable |
| Initial Cost | 10-20% higher | Lower upfront |
| Payback Period | 1 -- 1.5 years via savings | N/A |
LED Signboard Pricing Breakdown in Malaysia
| LED Signboard Type | Small (3-5ft) | Medium (6-12ft) | Large (12ft+) |
|---|---|---|---|
| 3D Channel Letters (Frontlit) | RM1,500 -- RM3,500 | RM3,500 -- RM8,000 | RM8,000 -- RM15,000+ |
| 3D Channel Letters (Backlit) | RM2,000 -- RM4,500 | RM4,500 -- RM10,000 | RM10,000 -- RM20,000+ |
| LED Neon Flex (Custom) | RM500 -- RM1,500 | RM1,500 -- RM3,500 | RM3,500 -- RM8,000+ |
| LED Lightbox | RM800 -- RM2,000 | RM2,000 -- RM5,000 | RM5,000 -- RM12,000+ |
| LED Display Board (Outdoor) | RM4,000 -- RM8,000 | RM8,000 -- RM20,000 | RM20,000 -- RM100,000+ |
Additional costs to budget for:
- Installation: RM500 -- RM3,000
- Signboard license: ~RM1,200 (annual)
- Electrical certification: RM200 -- RM500
- Design and artwork: RM300 -- RM1,500 (if not included)
UMAKE Expert Tip: As a manufacturer with our own CNC and laser cutting facilities, we often see clients overpaying by 30-50% when they go through advertising middlemen rather than directly to fabricators. Always request a breakdown of material costs versus labour.
Power Consumption and Running Costs
Calculated using TNB''s commercial tariff of approximately 45.62 sen/kWh:
| Signboard Type | Power Draw | Monthly Cost | Annual Cost |
|---|---|---|---|
| LED Channel Letters (10ft) | 50-80W | RM8 -- RM13 | RM100 -- RM160 |
| LED Neon Flex (6ft) | 30-60W | RM5 -- RM10 | RM60 -- RM120 |
| LED Lightbox (8ft x 4ft) | 60-120W | RM10 -- RM20 | RM120 -- RM240 |
| Traditional Neon (10ft) | 200-400W | RM33 -- RM66 | RM396 -- RM792 |
Over 10 years, the difference compounds to RM3,000 -- RM6,000 in savings on electricity alone.
Durability and Weather Resistance in Malaysian Climate
IP Ratings for Malaysian Conditions
- IP54 -- Basic splash protection. Sheltered outdoor areas only.
- IP65 -- Full dust and water jet protection. Minimum recommended for outdoor use in Malaysia.
- IP67 -- Submersion resistant. For ground-level signs in flood-prone areas.
Lifespan: 50,000 hours = ~11 years at 12hrs/day
Maintenance Tips for Malaysian Conditions
- Clean quarterly to maintain brightness and heat dissipation
- Inspect silicone seals before each monsoon season
- Ensure drainage holes are not blocked -- trapped water kills LED modules
- Apply anti-corrosion coating to metal hardware annually in coastal areas
UMAKE Expert Tip: We fabricate all signboard housings from marine-grade aluminium and 304 stainless steel with powder-coated finishes specifically designed for Malaysia''s humid conditions. Cheaper mild steel frames will show rust within 6-12 months.
Signboard License and Regulations
Every LED signboard requires a valid license. For the full process, read our complete guide to signboard licenses in Malaysia.
- License validity: One year, renewed annually
- Cost: ~RM1,200 (government + agent fees)
- No flashing lights: Many councils prohibit strobing LED effects
- Language requirements: Bahasa Malaysia must be the largest text
How to Choose the Right LED Signboard
By Business Type
- Retail / restaurant: 3D LED channel letters (frontlit)
- Cafe / lifestyle brand: LED neon flex
- Corporate office: 3D backlit (halo-lit) channel letters
- Shopping mall tenant: LED lightbox
- Advertising / events: LED display board
By Budget
- Under RM2,000: LED neon flex or small lightbox
- RM2,000 -- RM8,000: Standard 3D LED channel letters
- RM8,000 -- RM20,000: Premium backlit letters or large lightbox
- RM20,000+: LED video walls or large digital displays
Frequently Asked Questions
How long does an LED signboard last in Malaysia?
A quality LED signboard with IP65+ rating typically lasts 10 to 15 years in Malaysian outdoor conditions. LED modules are rated for 50,000 to 100,000 hours.
How much does an LED signboard cost in Malaysia?
Prices range from RM500 for a simple LED neon flex sign to RM100,000+ for large LED video walls. A typical shop front with 3D LED channel letters costs RM3,500 to RM10,000 including installation.
Do I need a license for my LED signboard?
Yes. Every signboard in Malaysia requires a license from your local council, costing approximately RM1,200 annually. Read our signboard license guide for details.
How much electricity does an LED signboard use?
A standard 10-foot LED channel letter signboard costs roughly RM8 to RM13 per month -- about 75-80% less than an equivalent traditional neon sign.
Is LED or neon better for Malaysian weather?
LED is significantly better. Traditional neon uses fragile glass tubes, contains mercury, and corrodes in humid coastal air. LED uses sealed, waterproof IP65+ construction designed for tropical conditions.
Can LED signboards be used outdoors in heavy rain?
Yes, with IP65 rating or higher. IP65 means complete dust protection and water jet resistance -- more than sufficient for Malaysian monsoon conditions.
How long does manufacturing and installation take?
Typical turnaround is 7 to 14 working days from design approval. Complex projects may take 3 to 6 weeks. Add 2-4 weeks for license processing.
