The question behind this page
What is the green assembly point sign, which size do I need, and where exactly should I put it?
Key Takeaways
- The sign is green with a white group of people and four inward arrows. It is symbol E007 in ISO 7010.
- It marks the place where people gather and are counted after leaving the building. It is not an exit sign.
- Use a large sign (about 40 × 50 cm) at the point itself and small arrow signs (about 18 × 13 cm) on the way there.
- Mount it above head height, where parked vehicles and a crowd cannot hide it.
- Use Malay and English together: “Tempat Berkumpul” and “Assembly Point”.
- UMAKE prices: RM9.90 for 18 × 13 cm and RM19.90 for 50 × 40 cm.
The Short Answer
An assembly point sign marks the safe place outside where everyone gathers after an evacuation, so that a roll call can be taken. Put one large sign at that place, above head height, and smaller arrow signs along the way to it.
The sign is only useful if people already know where it is. Choose the spot first, mark it, and then walk the route during a fire drill.

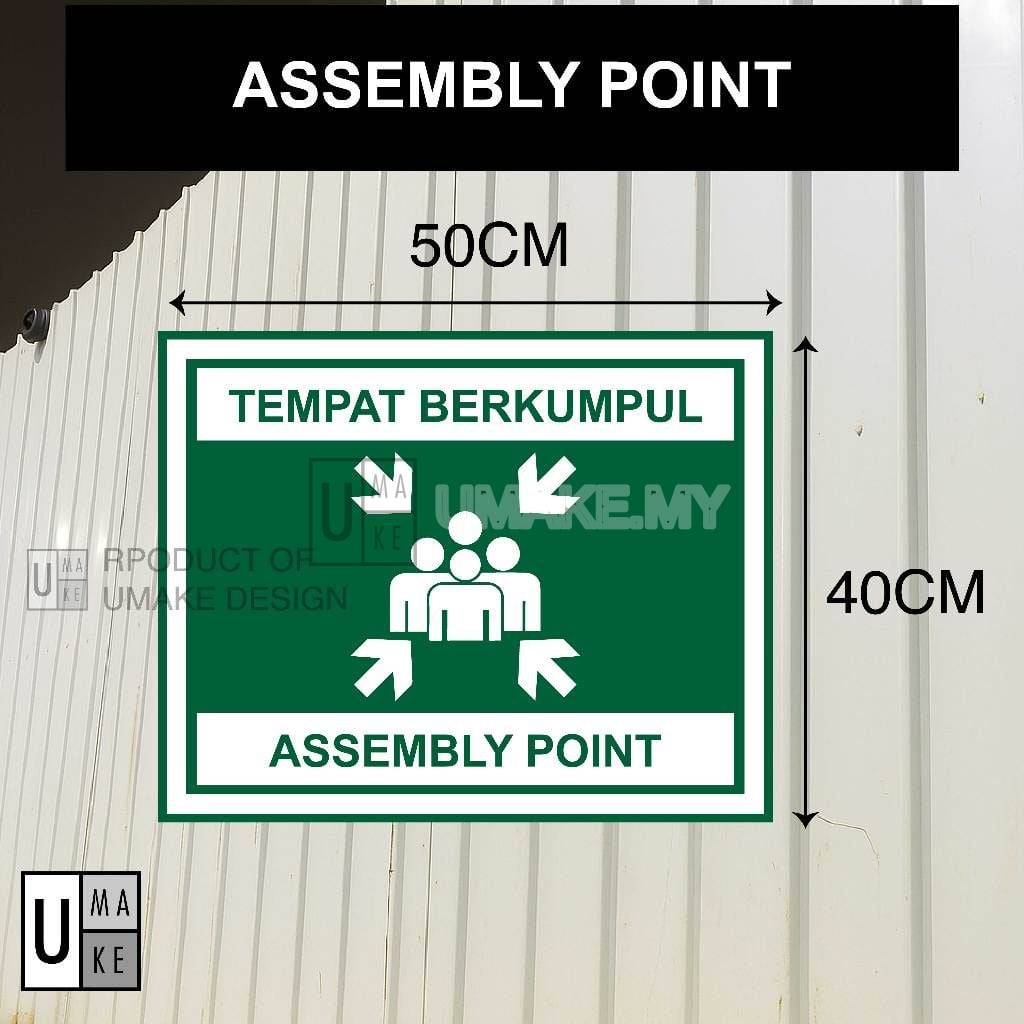

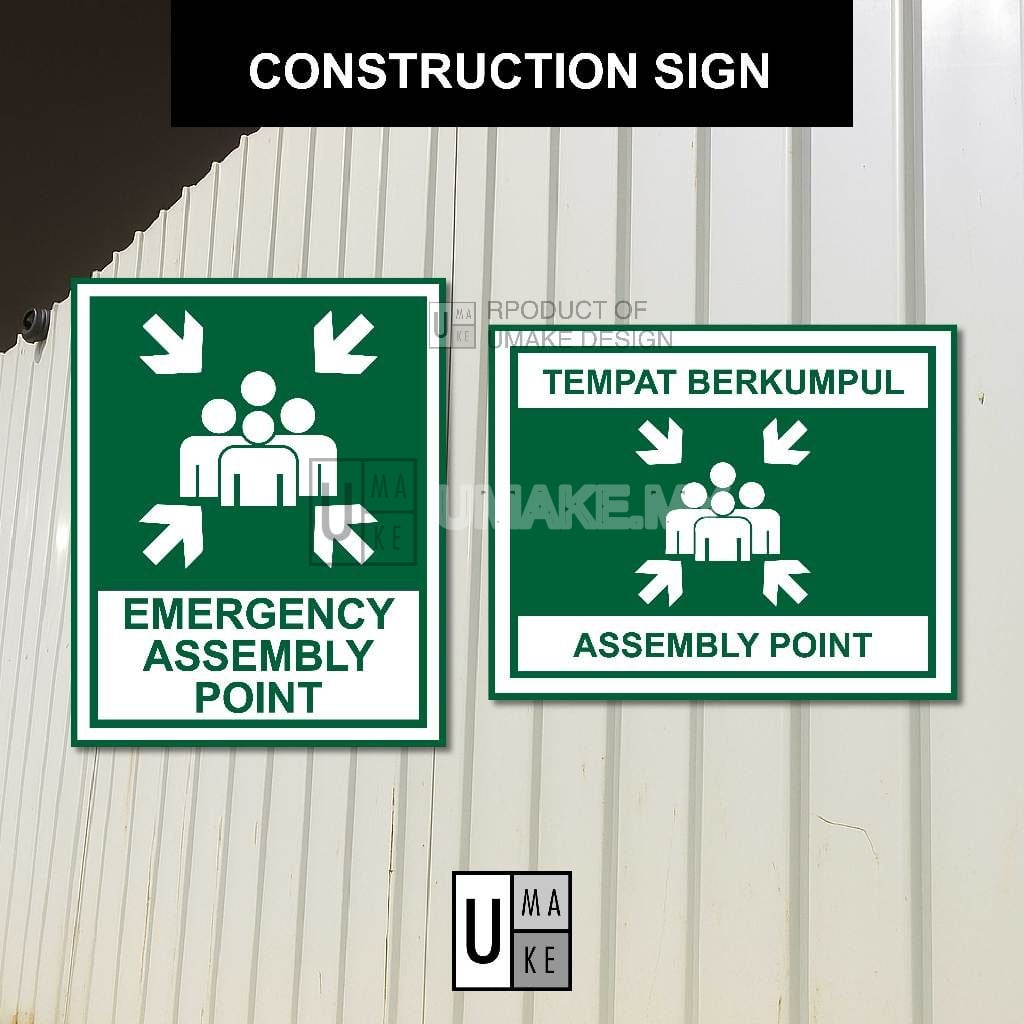

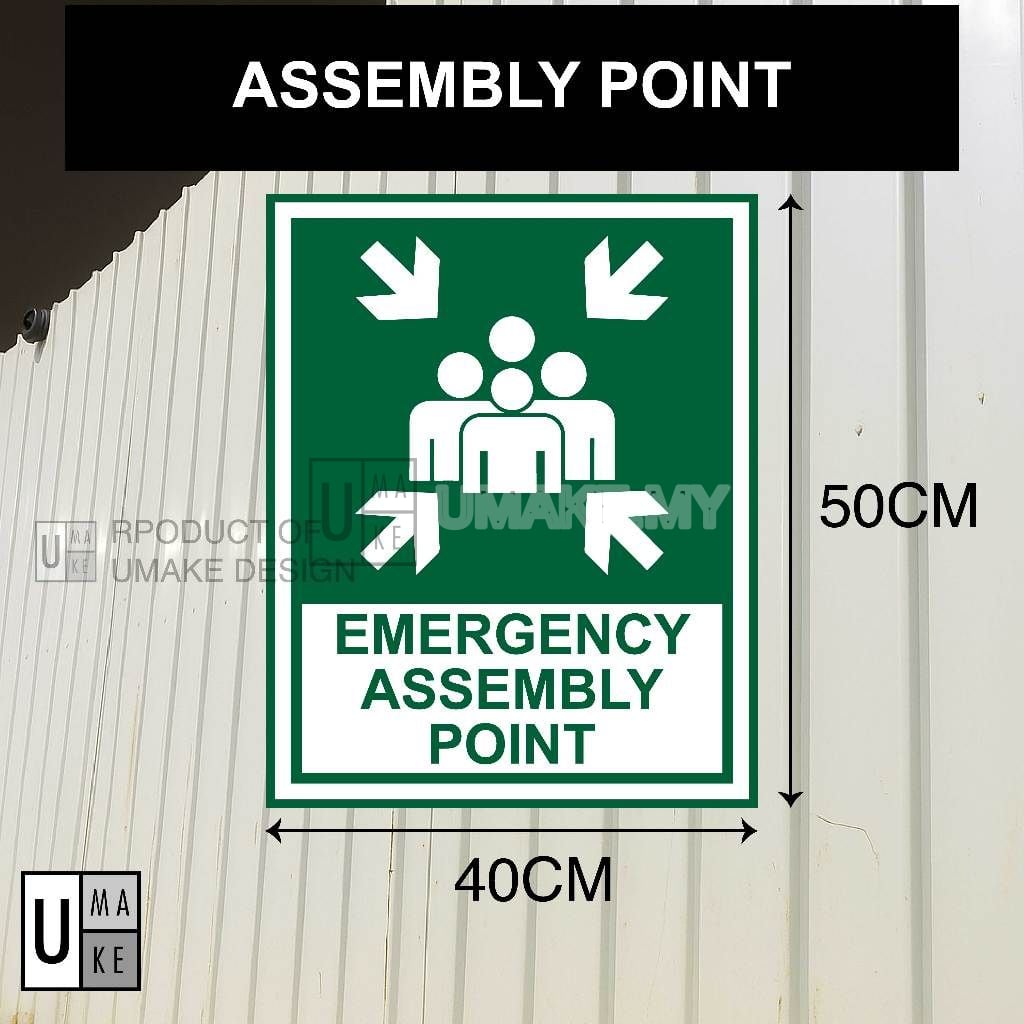

Our emergency assembly point sign comes in four layouts: portrait, horizontal, and with a left or a right arrow.
What the Sign Means
The symbol shows a group of people with four arrows pointing in from the corners. It is registered as E007, “Evacuation assembly point” in ISO 7010, the international standard for safety symbols.
Three details carry the meaning:
- Green background. Green means a safe condition: exits, first aid and escape routes.
- Rectangular or square shape. Used for safe-condition and information signs.
- White pictogram and text. For contrast against the green.
In Malaysia the sign normally carries the words “Tempat Berkumpul”, “Tempat Berkumpul Kecemasan” or “Emergency Assembly Point”. We explain the full colour system in safety sign colours and shapes.
It is often confused with the exit sign. An exit sign (“KELUAR”) shows the way out of the building. The assembly point sign shows where to go once you are out.
Is It Required in Malaysia?
We make signs; we do not issue approvals. Here is what we can say with confidence.
- Employers have a general duty under the Occupational Safety and Health Act 1994 to keep the workplace safe, which includes planning for emergencies.
- Fire safety in buildings is governed by the Fire Services Act 1988 and the Uniform Building By-Laws, enforced by Bomba.
- The Malaysian Standard for workplace safety signs is MS 2558, and ISO 7010 is the common reference for the symbols.
We have not found a single rule that sets one assembly point sign size for every building. What we see in practice is simple: an emergency plan names an assembly point, a fire drill sends people to it, and inspectors, auditors and insurers expect it to be marked.
For what applies to your building, ask your fire-safety consultant or the nearest Bomba station. Our overview of the law is in safety signs legislation in Malaysia.
Which Size to Use
Size follows distance. The further away people are when they need to spot the sign, the bigger it must be.
| Where the sign goes | Suggested size | Why |
|---|---|---|
| At the assembly point: car park, field, open yard | About 40 × 50 cm | People look for it from across the site, often over cars |
| Along the route: corridors, stairwell exits, gates | About 18 × 13 cm with an arrow | Read from a few metres while walking |
| Large factory, campus or estate | Custom, larger than 50 cm | Must be seen from the far end of the site |
These are our recommendations from making these signs for factories, schools and offices, not figures from a regulation. If your consultant specifies a size, follow the consultant.
Need help with assembly point sign?
Get a free quote from UMAKE — custom signage designed and manufactured in Malaysia.
Where to Put the Assembly Point
Choose the place before you choose the sign. A good assembly point is:
- Away from the building, clear of smoke, falling glass and debris.
- Out of the way of fire engines, hydrants and the main gate.
- Reachable without crossing a busy road.
- Large enough for everyone on site, including visitors and contractors.
- Open and well lit, so a roll call can be taken at night.
Avoid the loading bay, the area beside gas or chemical stores, and any spot under a glass façade. How far from the building it should be depends on the building, so take that figure from your emergency plan.
Large sites usually need more than one point, labelled A, B and C, with each department assigned to one.
How to Mount the Sign
- Height. Above head height, with the bottom edge around 2 metres or higher, so cars and a crowd do not hide it.
- Facing. Towards the direction people arrive from. On an open field, use a sign on each side of the pole.
- Fixing. Our signs have pre-drilled holes. Screw them to a wall or fence, or use bolts or cable ties on a pole. Double-sided tape is for smooth indoor walls only.
- Light. Place it where existing lighting reaches it.
- Clear view. Check it again after a few months. Trees grow and new parking bays appear.
How Many Signs You Need
A simple way to count:
- One large sign at each assembly point. Two if people arrive from opposite sides.
- One arrow sign at each final exit door, pointing towards the point.
- One arrow sign at each turn where the route is not obvious.
- The assembly point marked on the evacuation plan displayed on each floor.
A small office with one exit may need only two signs. A factory with four exits and two assembly points often needs ten or more. Our workplace safety sign checklist covers the other signs to review at the same time.
Sizes and Prices
Prices on our product page on 11 October 2026:
| Size | Layouts | Price |
|---|---|---|
| 18 × 13 cm | Portrait, horizontal, left arrow, right arrow | RM9.90 |
| 50 × 40 cm | Portrait, horizontal, left arrow, right arrow | RM19.90 |
The signs are 1.5 mm HIPS board, printed directly on the board and waterproof. Delivery is RM9 within Klang Valley and RM14 to the rest of Peninsular Malaysia.
We print in our own factory in Balakong, so we can add a point letter (A, B, C), your company name or logo, or make a larger size. Send the wording and quantity on WhatsApp for a quote.
Common Mistakes
- A sign with no drill. People follow habit in an emergency. Walk the route at least once a year.
- The sign hidden by parked vehicles. The most common problem in car parks. Mount it higher.
- The assembly point in the fire engine’s path.
- One point for a very large site, so the roll call takes too long.
- A faded sign. Green that has turned pale yellow is easy to miss. Replace it.
- English only on a site where many workers read Malay first.
Frequently Asked Questions
What does an emergency assembly point sign look like?
It is a green sign with a white pictogram of a group of people and four arrows pointing inwards from the corners. This is symbol E007, “Evacuation assembly point”, in ISO 7010. In Malaysia it usually carries the words “Tempat Berkumpul” or “Emergency Assembly Point”, often both.
Is an assembly point sign required in Malaysia?
There is no single rule that names the sign and a size for every building. In practice, an emergency plan needs a named assembly point, and people can only use it if it is marked. Fire-safety inspections, audits and insurers commonly look for it. Ask your fire consultant or the nearest Bomba station what applies to your premises.
What size should an assembly point sign be?
Use a large sign, about 40 × 50 cm, at the assembly point itself, because people look for it from across a car park or field. Use small signs, about 18 × 13 cm, with an arrow along the route. Very large open sites need a bigger custom sign.
How high should the sign be mounted?
Mount it above head height, roughly 2 metres or more to the bottom edge, so it stays visible over parked cars and over a crowd. On an open field, fix it to a pole.
How far should the assembly point be from the building?
Far enough to be clear of smoke, falling glass and fire engines, and close enough that people can walk there quickly. The exact distance depends on the height and use of the building, so it should come from your emergency plan or fire consultant, not from the sign maker.
What is the assembly point sign made of?
Ours is 1.5 mm HIPS board printed directly on a flatbed printer. It is waterproof and has pre-drilled holes, so it can be screwed to a wall, a fence or a pole indoors or outdoors.
Should the sign be in Malay or English?
Use both where you can. “Tempat Berkumpul” with “Assembly Point” underneath is understood by staff, visitors and contractors, and the pictogram covers everyone else.
