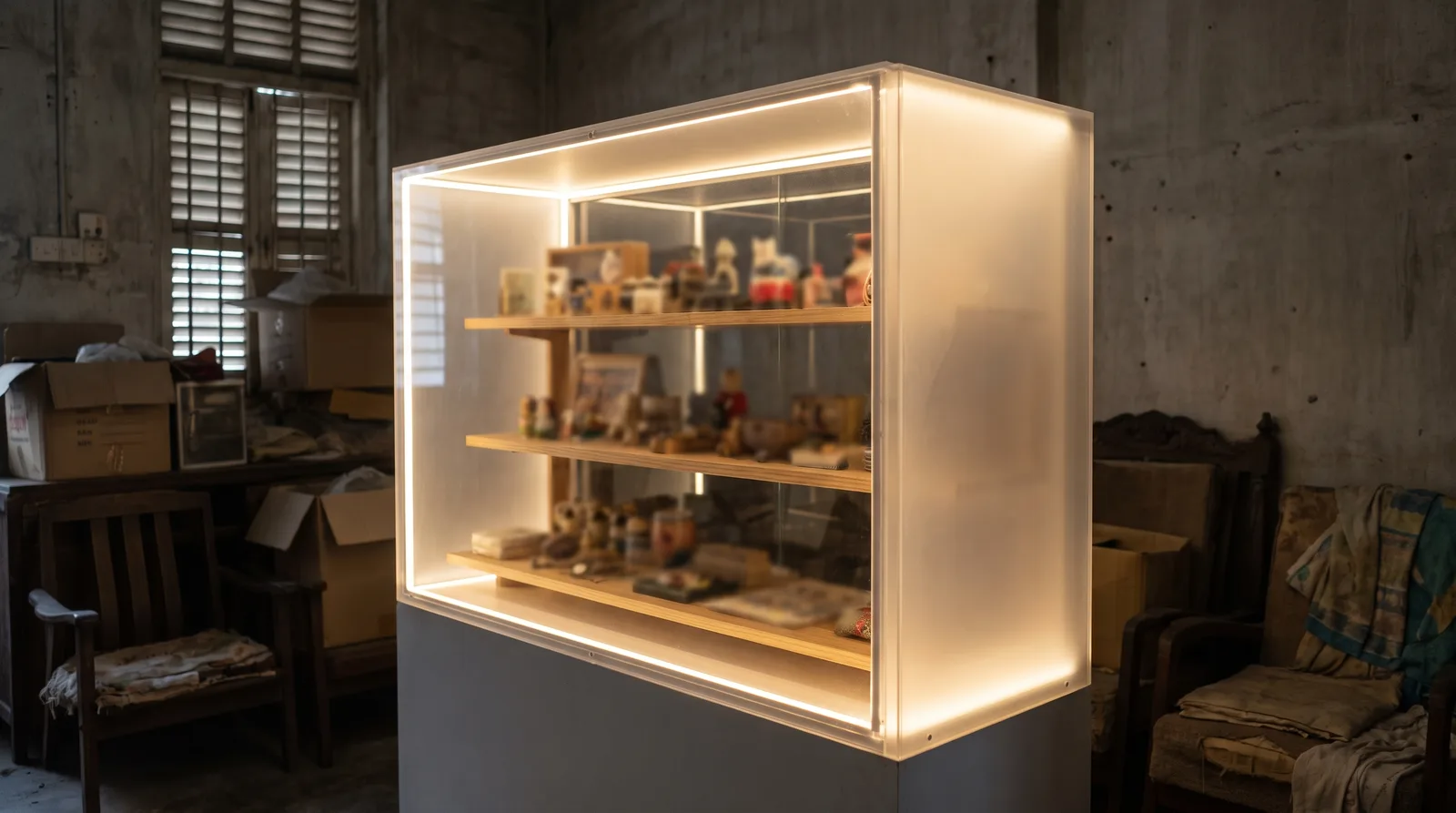

There is one upgrade that transforms any acrylic display case from ordinary to extraordinary: LED lighting. A properly lit acrylic display case with LED light makes colours pop, creates dramatic shadows, and turns your collection into a museum-quality showcase that looks stunning day and night.
In this guide, we cover every type of LED lighting available in Malaysia, compare power sources, walk you through installation step by step, and recommend the best setups for different collections. If you are still choosing your display case, start with our acrylic display case Malaysia guide first.
Why Add LED Lighting to Your Acrylic Display Case?
Visibility in Any Room Condition
Without lighting, your display case depends entirely on room light. LED lighting ensures your display looks its best 24/7, regardless of room lighting conditions.
Colour Accuracy and Vibrancy
LED lights with a high CRI (Colour Rendering Index) of 90+ reveal the true colours of your collectibles. Standard room lighting can make colours look dull or distorted.
Dramatic Presentation
Strategic lighting creates depth, shadows, and focal points. Top-mounted LEDs create spotlights. Side-mounted LEDs produce dramatic lateral shadows. Bottom-mounted LEDs create a glowing pedestal effect.
Retail Impact
For business owners, LED lighting increases product visibility and perceived value. Research shows lit retail displays attract 30-50% more customer attention. Read our retail display case design guide for more recommendations.
Types of LED Lighting for Display Cases
1. LED Strip Lights (Most Popular)
Flexible adhesive-backed LED strips in rolls. Available in warm white (3000K), cool white (6000K), neutral white (4000K), and RGB. Most strips are 8-12mm wide.
2. LED Puck Lights
Small circular LED modules producing a focused beam. Available in battery-operated versions for cases without nearby power outlets.
3. LED Light Bars
Rigid aluminium bars with built-in LEDs and diffuser. Even light distribution with no visible hotspots. Professional, gallery-quality result.
4. Edge-Lit Acrylic Panels
Premium technique where LED strips attach to the edge of acrylic panels. Creates uniform, ethereal illumination. Used in premium retail signage and museum displays.
| LED Type | Price per Unit | Light Quality | Best For |
|---|---|---|---|
| LED Strip | RM5-25/metre | Good | Most display cases |
| LED Puck | RM8-20 each | Focused spot | Highlighting individual items |
| LED Light Bar | RM20-60 each | Excellent (even) | Professional gallery look |
| Edge-Lit Panel | RM80-200 | Premium (uniform) | Museum, premium retail |
Need a Display Case with Built-In LED?
Need help with Acrylic?
Get a free quote from UMAKE — custom signage designed and manufactured in Malaysia.
UMAKE offers custom acrylic display cases with integrated LED lighting. Factory direct, any size.
Browse Display Cases →Battery vs USB vs Plug-In: Which Power Source Is Best?
Battery Powered
Complete freedom from cables. 20-80 hours runtime. Costs RM5-15/month in batteries. Best for cases far from outlets.
USB Powered
The sweet spot for most collectors. Power from any phone charger adapter (5V). Thin cable, minimal power draw. Most popular option.
Plug-In (12V/24V Adapter)
Brightest and most reliable. Best for large cases with 3+ metres of LED strip. Professional choice for retail shops.
| Power Source | Brightness | Cable Needed? | Monthly Cost |
|---|---|---|---|
| Battery (AAA) | Low-Medium | No | RM5-15 |
| USB (5V) | Medium | Thin USB cable | Under RM1 |
| Plug-In (12V) | High | Power adapter + cable | Under RM2 |
How to Install LED Strips in an Acrylic Display Case
Installing LED strips takes 15-30 minutes. Here is how:
- Plan your layout. Top inner edge (pointing down) gives the best overall illumination.
- Measure and cut. Cut only at designated cut points (marked with scissors icon).
- Clean the surface. Use rubbing alcohol on the mounting surface. Let dry 2-3 minutes.
- Peel and stick. Work in 10cm sections, pressing firmly for 10 seconds each.
- Connect corners. Use L-shaped connectors or gently bend the strip 90 degrees.
- Route the power cable. Run through the back or bottom of the case.
- Test and adjust. Check for even illumination from front viewing position.
Pro tip for Malaysian climate: Apply a thin line of clear silicone along both edges of the LED strip after mounting. This permanently bonds the strip and weatherproofs the connections against humidity.
Best LED Display Cases for Different Collections
| Collection Type | Best LED Colour | Kelvin Rating | Placement |
|---|---|---|---|
| Figurines, anime | Warm/neutral white | 3000-4000K | Top + one side |
| Hot Wheels, diecast | Cool white | 5000-6000K | Top or bottom uplighting |
| Lego sets | Neutral white | 4000-4500K | All four top edges |
| Food, bakery | Warm white | 2700-3000K | Top edge |
Frequently Asked Questions
Do LED lights damage collectibles or figures?
No. Modern LED lights produce negligible UV radiation and very little heat. A standard 5V LED strip produces virtually no heat that would affect plastic figures or painted surfaces. Maintain at least 5cm distance between the LED strip and your closest item as a precaution.
What is the best LED color for display cases?
Neutral white (4000-4500K) is the most versatile choice. Cool white (5000-6000K) makes metallic items sparkle. Warm white (2700-3000K) complements wooden furniture and skin tones on figurines. Avoid RGB for serious display — it distorts true colours.
How do I add LED lights to an existing acrylic case?
Use adhesive-backed LED strip lights. Clean the inside edge with rubbing alcohol, peel the backing, and press along the top inner edge. Route the cable out through the back or bottom. Takes 15-30 minutes with just scissors.
How long do LED strip lights last in a display case?
Quality LED strips last 30,000-50,000 hours. Running 8 hours daily, that is 10-17 years. The adhesive backing usually fails before the LEDs. Use a timer and apply silicone over the strip to prevent peeling in humid climates.
